| Model | DCP18W | DCP45W | DCP60W | DCP60W | DCP100W | DCP120W |
|---|---|---|---|---|---|---|
| Input | 9Vdc / 2A(max) | 100 ~ 240Vac 50/60Hz | 100 ~ 240Vac 50/60Hz | |||
| 12 ~ 24Vdc(2.5A max) | 12 ~ 24Vdc(2.5A max) | |||||
| Output | 1 × 9Vdc / 1A(max) | 1 × 9V/12V (2A)(selectable) | 1 × 9V/12V (2A)(selectable) | |||
| 1 × 12Vdc / 1A(max) | 4 × 12V(3.5A max) | 4 × 12V(5A max) | Standard：4 × 12V(5A max) | Standard：4 × 12V(8A max) | Standard：4 × 12V(10A max) | |
| customized： | customized： | customized： | ||||
| 3 × 12V(5A) +1 × 20V(3A) | 3 × 12V(8A)+1 ×20V(5A) | 3 × 12V(10A)+1 × 20V(6A) | ||||
| 1 × 5VUSB / 2A (max) | 1 × 5VDC +2 × 5VUSB(2.4A max) | 1 × 5VDC +2 × 5VUSB(2.4A max) | ||||
| Standard： | Standard： | |||||
| 1 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) | 1 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) | |||||
| customized 1： | customized 1： | |||||
| 2 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) | 2 × 24(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) | |||||
| customized 2： | customized 2： | |||||
| 1 × 24V(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) + 1 × 15V(1.5A) /24V(1A) (POE) (selectable) | 1 × 24V(1.2A) /48V(0.6A) (POE 1 Gbps) (selectable) + 1 × 15V(1.5A) /24V(1A) (POE) (selectable) | |||||
| customized 3： | customized 3： | |||||
| 2 × 15V(1.5A) /24V(1A) (POE) (selectable) | 2 × 15V(1.5A) /24V(1A) (POE) (selectable) | |||||
| Power Output | 18W | 45W | 60W | 60W | 100W | 120W |
| Battery Capacity | 3600~10400mah | 8000~20800mah | 8000~48000mah | |||
| Battery Number | 2 or 4 (selectable) | 4 or 8 (selectable) | 4 or 8 (selectable) | |||
| Battery Specification | 18650(Lithium-Ion/LiFePO4) | 18650(Lithium-Ion/LiFePO4) | 18650(Lithium-Ion/LiFePO4) or 21700(LiFePO4) or 32650(LiFePO4)(selectable) | |||
| Working Temperature | 0-40℃ | |||||
| Storage Temperature | -10℃-70℃ | |||||
| Humidity | 0-85%RH | |||||
| IP Rating | IP20 | |||||
| Unit Dimension (mm) | 128 × 77 × 27 | 180 × 130 × 64 | 214 × 158.5 × 86 | |||
| Net Weight (g) | 260g (max) | 850g (max) | 1850g (max) |

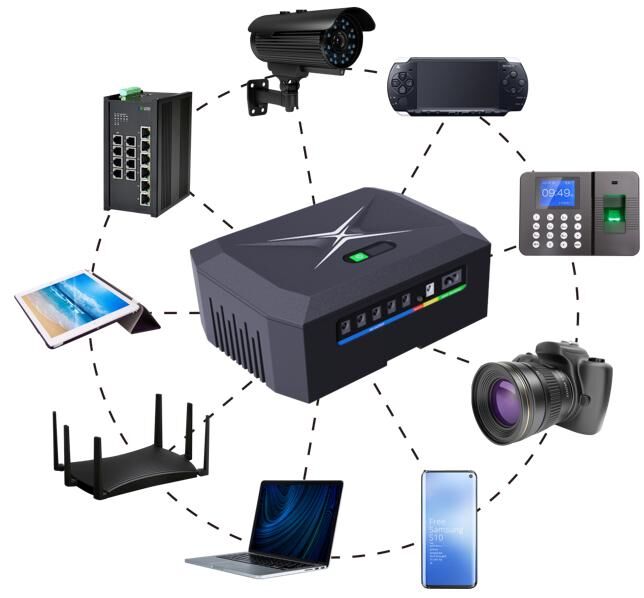

60-120W: Smartphone/Smartwatches/Laptops/Modem/Router/VOIP Phone/ Surveillance Systems/ /Alarm Systems/ POS systems/ Smart Home Appliances.

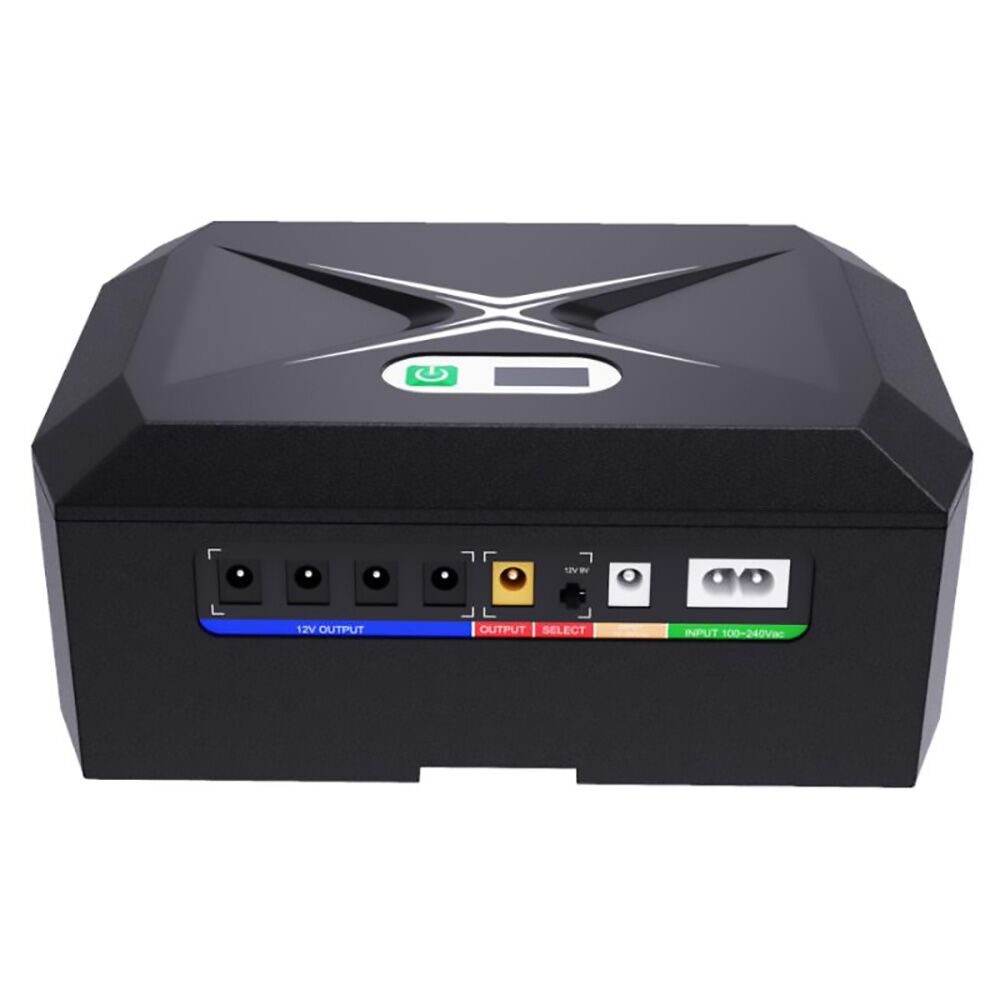

This Versatile DC UPS is with battery long back-up system, as uninterruptible power supply for Laptop or 19V DC computer, CCTV, WIFI, LCD Monitor and DVR(Digital Video Record).
