1. DC UPS are suitable for most digital products in the market, such as CCTV MONITOR POE CAM TIMERECODER WIFI MONITOR.
2. Our dc power backup system have battery management system technology. Mini DC UPS has various protection mode, such as over-charging, over-discharging,and short circuit protection.
3. Batttery capacity 13WH-38WH, OEM customers can choose the battery capacity
4. We can customize the encolsure color for OEM customers.
| MINI DC UPS SPECIFICATION | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

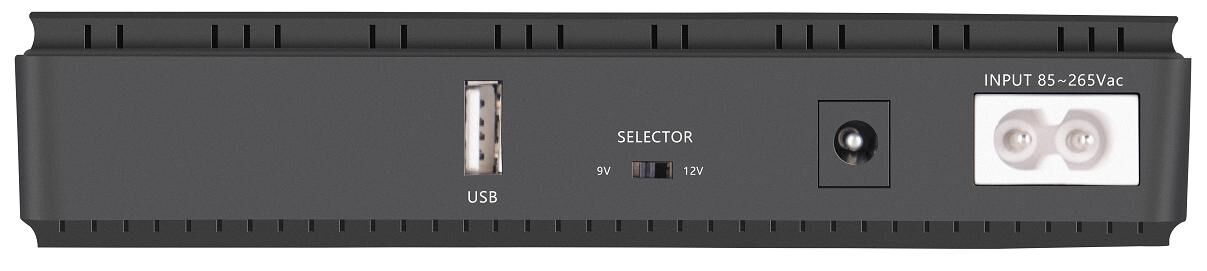

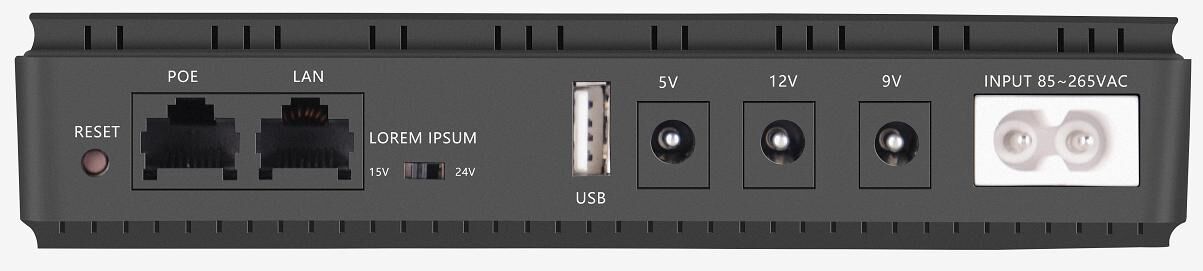

| Model | DC1018C | DC1018CP | DC1018 | DC1018P | DC1036 | DC1036P | ||||
| Available Enclosures | ||||||||||
| Input | 85-265Vac/50-60Hz | |||||||||
| Output | USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A | USB 5V/2A | ||||
| DC 5V/2A | DC 5V/2A | DC 5V/2A | DC 5V/2A | |||||||
| DC 9V/12V 1A(selector) | DC 9V/12V 1A(selector) | DC 9V/1A | DC 9V/1A | DC 9V/2A | DC 9V/2A | |||||
| DC12V/1A | DC12V/1A | DC12V/2A | DC12V/2A | |||||||
| POE 15V/24V 0.6A(selector) | POE 15V/24V 0.6A(selector) | POE 15V/24V 1A(selector) | ||||||||
| Output power(Max.) | 18W | 18W | 18W | 18W | 36W | 36W | ||||
| Quantity & Capacity of battery | 2600mAh*4(Lithium battery) OR 2000mAh*4(LiFePO4) you can choose single battery capacity 1800mah -2600mah | |||||||||
| Operate temperature | -10℃ – 40℃ | |||||||||
| Humidity | 10%-90%RH | |||||||||
| Dimension(mm) | 160*105*33mm | |||||||||
| Net weight(kg) | 0.38kg | 0.4kg | 0.39kg | 0.4kg | 0.4kg | 0.42kg | ||||
| Contact: Ms . Joy Lo | ||||||||||
| Email: joy@newstarpowersupply.com | ||||||||||
| PH/Wechat: +86 132 6556 4431 | ||||||||||
| NEWSTAR POWER TECHNOLOGY CO., LIMITED |
Built—in lithium batter
lntelligent circuit design with over charging, over-discharging and short circuit protection
DC 5V/9V/12V/15V/24V output voltage selectable
Customized products of various capacities

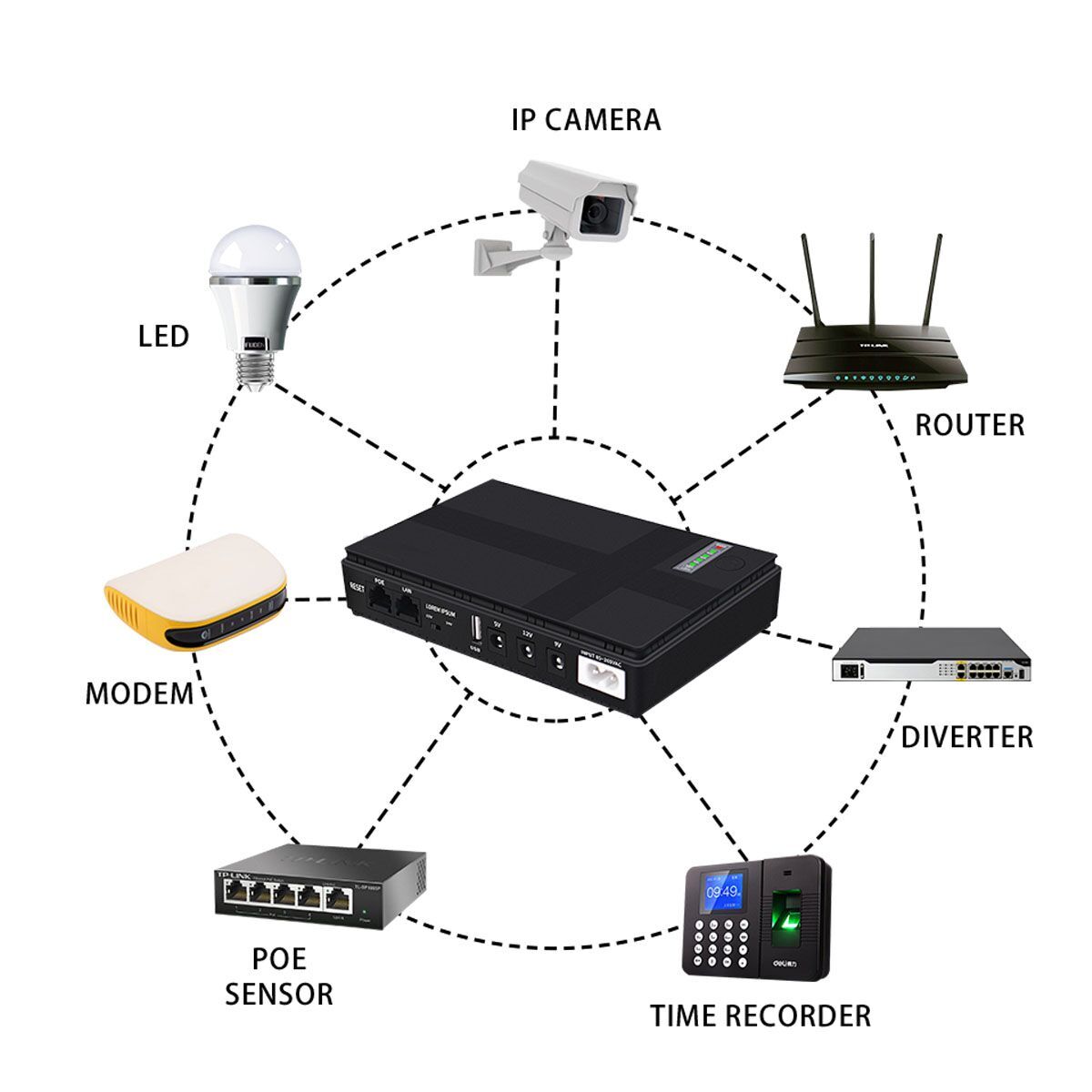

Router/VOIP Phone System/ Surveillance Systems/ Modem/Alarm Systems/POE Camera /attendance machine/ POS system
